Containment Solutions
IBC Containers and Bins

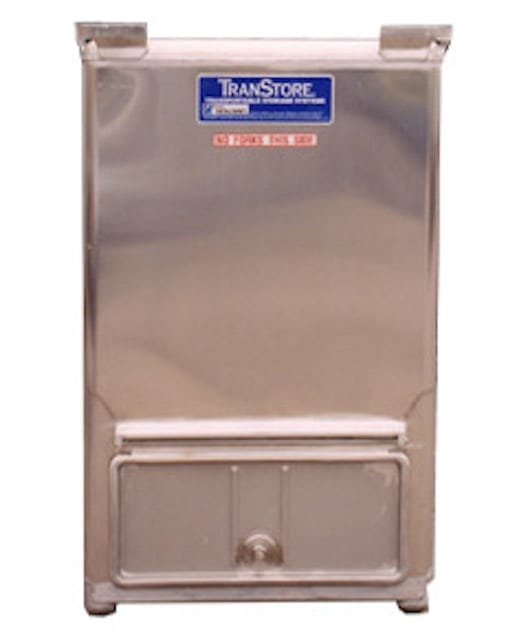

The original IBC Containers (Intermediate Bulk Container) was made from plywood in 1937 for the storage and handling of flour for the milling industry. After WWII the Seattle area originators formed a partnership with Beatrice Steel Tank in Nebraska. The first metal containers were made from aluminum in 1948. The side door design allowed for the discharge of almost any powder including those with poor flow characteristics.
CPS has a registered manufacturing Number “M5730”. It allows us to design and build Dry material handling Bins labeled as CFR49 UN11B Group Y DOT Title 49 Compliant, for Hazardous and Regulated materials shipping over the highway system.
A pivoted hopper discharge was designed to match the bin’s door area and was used for 2-3 years until a new tilting discharge hopper design improved the sealing and dust control. The tilting discharge or stationary hopper was used for many years and worked very well until the bins became dented and worn making them hard to seal.
Bottom discharge units were also designed using a transition hopper from the rectangular body down to a discharge valve. This design virtually eliminated the problem of dust control and allowed for the discharge to close against the flow of product.
Additional Containment Solutions
Interested in product information?
Here are download versions of product specifications and information.
Basic Features
IBC Containers are also known as Bins, Hoppers, Vessels, and Totes… Bins and Bin Systems are the industry standard for powder handling and processing applications where close containment is required. Custom Powder Systems will custom design to meet your specific requirements:
- Close containment
- Ease of cleaning
- Off-line storage and testing
- Quick batch changeover
- Repeatable, homogenous blending
- Modular design for ease of transport and versatility

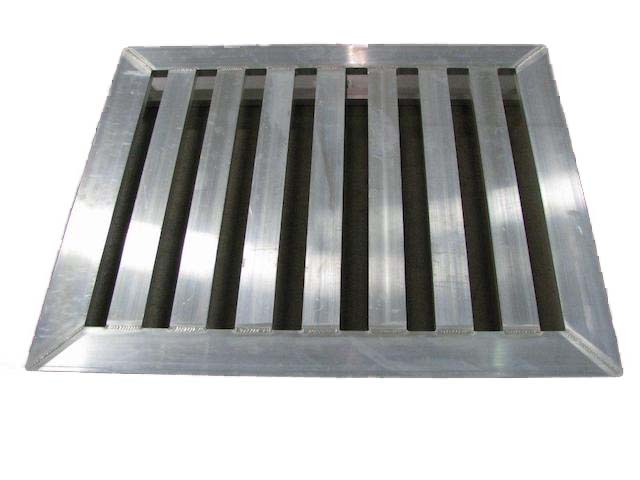

New! Aluminum pallets to solve the static, breaking, shedding, staining and cleaning issues with plastic or other materials. Pallets can be customized to your size and operation requirements. Cost effective with residual scrap value.
Spare Parts
We highly recommend ordering spare parts at the time of equipment purchase due to current extended supply chain lead times. Spare parts kits consist of typical wear parts by equipment type with detailed part selection confirmed shortly after client drawing approval. The spare parts list will be provided for review and discussion with our spare part specialist to identify any adjustments desired based on client’s unique needs and usage.
Details
Features | Specifications |
Application | Pharmaceutical, Nutraceutical, Food, Industrial |
Volumetric Capacity | Total waterfill volumetric capacity is XX Ft³. |
Blending Capacity | Blending capacity is XX Ft³ if filled to 2/3 of the total water fill capacity as we recommend for proper blending. |
Stacking Positioners | None OR Stacking features are provided on each of the four IBC top corners to facilitate stacking IBCs two (2) high |
Top, Body & Hopper Gauge | 12-Ga. (.1046”) |
Base Frame Design | 4” Dia. Tubular legs. (304 S/S) with UHMW footpads mounted to legs to prevent floor scuffing. Or formed angle design |
Overall Dimensions | 42” x 48” base x XX” tall |
Clamp Bars | None OR Horizontal 4” tube members are mounted on either side of Bin to serve as an attachment point to the blender. |
Hopper Angle | 60° Hopper angle. The hopper transitions from rectangular to a circular outlet. |
Fork Channels | None OR 4 way, 7” x 5” |
Pallet Jack Guides | Yes OR No |
Casters | None OR 8” diameter with non-marking wheel. Two (2) are rigid and two (2) are swivel with brake |
Lid Gasket | FDA compliant white EPDM, snap-on mounting |
Lid and Clamp Type | 18” OR 22” nominal dia. lid with quick acting lever-lock clamp ring |
Fill Port | None OR An 8” sanitary ferrule cap, clamp and gasket is centrally mounted in the lid to serve as a fill port |
Accessory Port | None OR A 2” sanitary ferrule with cap, clamp and gasket is mounted in the IBC top |
Vent Port | None OR 2” V2B screen mesh vent mounted by Tri-Clamp connection in top of IBC |
Outlet Valve Size | 6” 8” 10” 12” |
Outlet Valve Style | CPS Clean-in-Place (CIP) OR WCRC tool-less quick disassemble clean-out(of)-place (COP) |
Remote Valve Actuator Adapter | Yes OR No |
The reason behind the name “Custom” Powder.
Our capabilities do not stop at stand-alone equipment;
we are a major provider of integrated “turn-key” custom systems.
